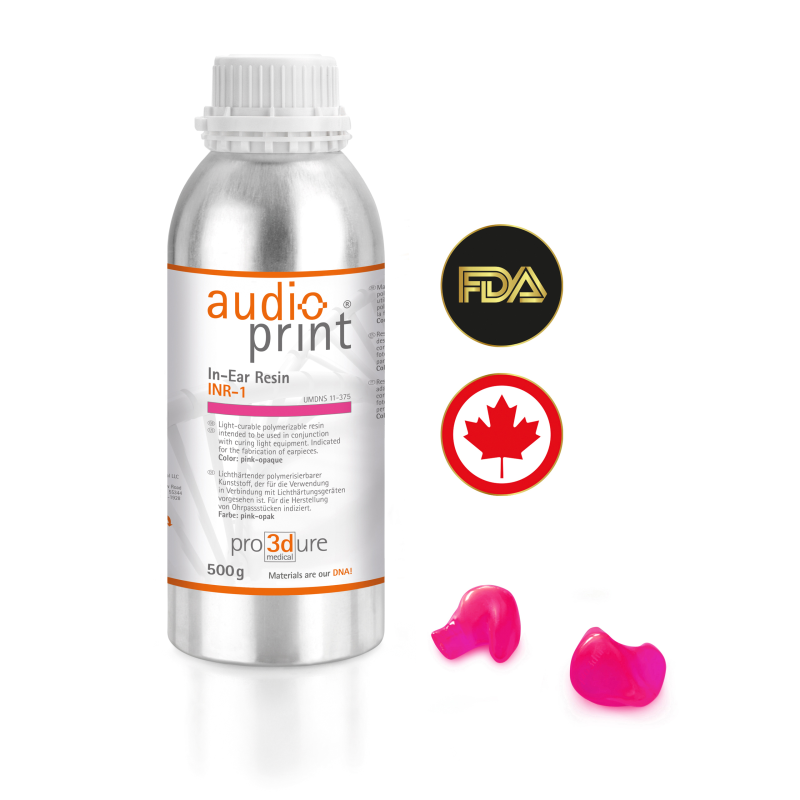

Pro3Dure audioprint INR-1: earpieces 3D printing resin with wide colors range

Price range: 166,80 € through 294,96 €

Audioprint INR generative resins have been developed for special demands like work protection and audio applications. They are characterized by highest UV-stability and extraordinary mechanical properties.

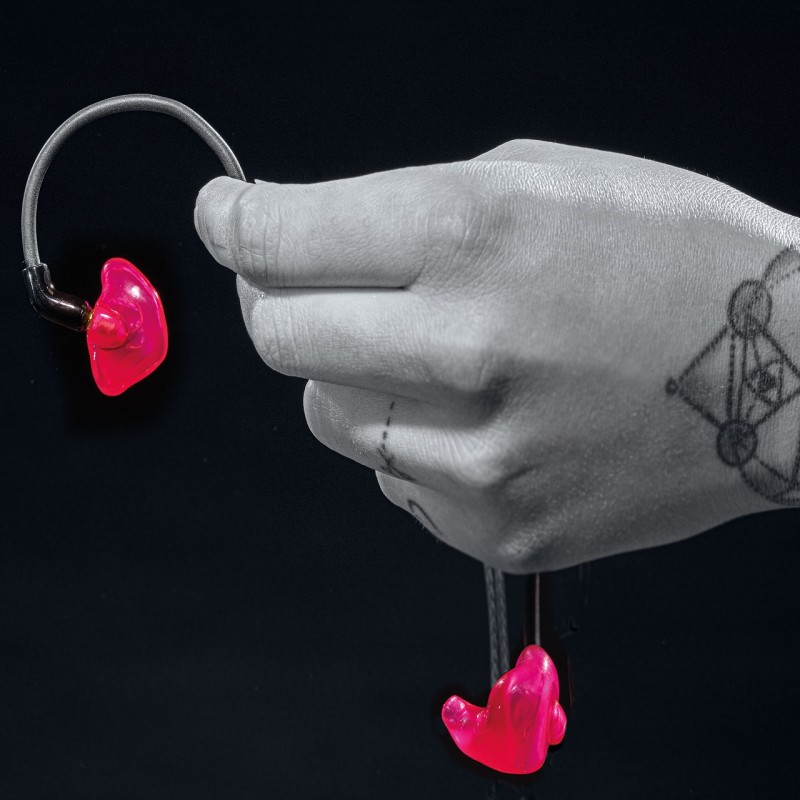

Four signal colors are available for 3D-printing of hearing protection earmolds and new special colors for in-ear monitors like purple-opaque, blue-opaque and pink-opaque.

Description

Audioprint INR generative resins have been developed for special demands like work protection and audio applications. All resins of the audioprint INR series are characterized by highest UV-stability, extraordinary mechanical properties (e.g. highest elongation at break values) and a broad spectrum of new colors. Four signal colors are available for 3D-printing of hearing protection earmolds and new special colors for in-ear monitors like purple-opaque, blue-opaque and pink-opaque. Accordingly, the audioprint INR series is the perfect addition to the audioprint GR-series and offers you the possibility to fulfill your customer´s demands more individual. Make 3D-printing more colorful!

Advantages:

  • highest UV stability
  • highest elongation values
  • wide range of colors
  • signal colors for industrial safety



Manufacturing process:

  1. Prepare data (CAD & build preparation).
  2. Choose process parameters (build style, etc.).
  3. Transfer prepared data to 3D printing device.
  4. Prepare 3D printing – shake bottle.
  5. Fill resin tank of 3D printing device.
  6. Build the parts.
  7. Clean parts (with IPA ≥ 97 % or equivalent cleaning agent), approx. 4 min. in an ultrasonic bath or equivalent device – precleaning recommended.
  8. Dry parts, until there are no residues of IPA or equivalent cleaning agent.
  9. Post curing (4 min.): inert atmosphere recommended (use adequate light curing device).
  10. Finish parts.



Important

  • To avoid detrimental effects on material quality do not expose the liquid material to irradiation under any circumstances.

  • Deviations from the described manufacturing process may lead to different mechanical and optical properties of the audioprint INR-1 temporary material.

  • Ensure personal protective gear during processing.

  • Caution: Polymerized resins are chemically resistant – avoid stains on clothing!

  • Avoid any contact with skin and eyes. In case of accidental contact, rinse with adequate running water, consulting a doctor if necessary.

  • The lot number and the best before date are indicated on each audioprint INR-1 temporary packaging. In case of claims please always indicate the lot number of the product.

  • Do not use the product after expiry of the best before date.



More information  MSDS



Safety notice

The company I.D.M di Marin Davide is not a manufacturer of medical materials or devices. The material sold on this site is neither produced nor controlled by the company I.D.M. di Marin Davide, who in no case can be held responsible for any damage caused by use or application of the material, which must only be used on suitable machines and by specialized personnel, exclusively for the purpose indicated, according to the manufacturer’s instructions. For resins with European certification, the properties of the finished product vary according to the entire printing and post-curing process; refer to the manufacturer for any information about it.

Additional information

Weight 1,5 kg
Dimensions 10 × 10 × 30 cm
Color

amber, blue-opaque, black-opaque, black-translucent, blue-grotto-transparent, blue-transparent, clear-transparent, cognac-transparent, green-transparent, light-blue-opaque, neon-green-translucent, neon-orange-translucent, neon-pink-translucent, neon-yellow-translucent, neves blue, olive, petrol-transparent, pink-opaque, pink-translucent, purple-opaque, purple-transparent, purple-transparent B, red-opaque, red-transparent, smoke-grey, smoke-grey-transparent, white-opaque

Size

500 g
